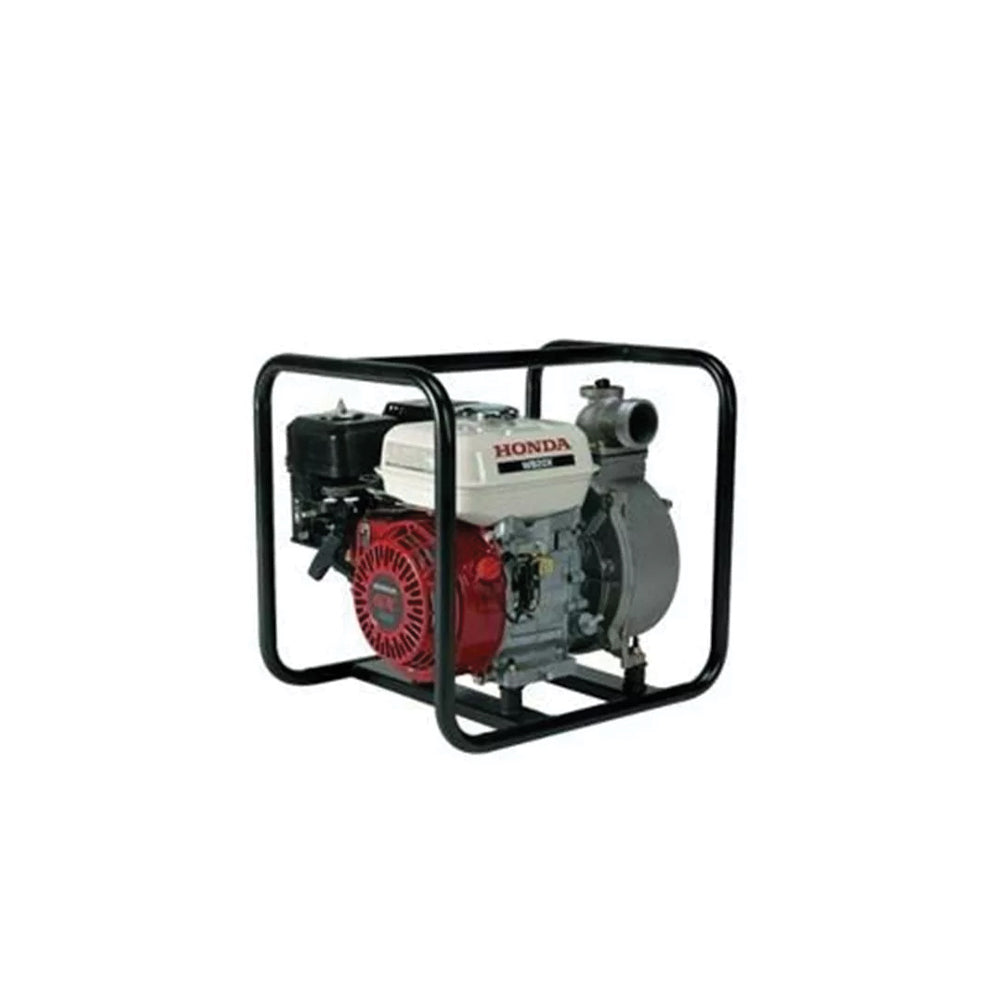

HONDA 50MM OPEN FRAME PUMP (CLEAR WATER) GX ENGINE

HONDA 50MM OPEN FRAME PUMP (CLEAR WATER) GX ENGINE

The Honda 50mm Open Frame Clear Water Pump is a powerful and reliable solution for high‑volume water transfer. Powered by the legendary Honda GX120 4‑stroke engine, this pump delivers exceptional performance, durability, and efficiency.

Features

• Delivers up to 600 litres per minute with a maximum head of 32m

• Self‑priming centrifugal design for quick and easy operation

• Heavy‑duty open frame construction with vibration dampers

• Compact and portable design weighing only 21kg

• Quick‑release couplers for fast hose connection

• Oil alert system for engine protection and longevity

Specifications

• Engine Model: Honda GX120 OHV 4‑stroke, 118cc, 4hp

• Fuel Type: Unleaded petrol

• Fuel Tank Capacity: 2.5 litres

• Fuel Consumption: Approximately 1 litre per hour

• Starting System: Recoil start

• Maximum Flow Rate: 600 litres per minute (36,000 litres per hour)

• Maximum Total Head: 32 metres (approx. 3.2 bar / 45.4 psi)
• Maximum Suction Head: 8 metres

• Self‑Priming Time: ~110 seconds at 5m suction lift

• Pump Type: Centrifugal, self‑priming clear water pump

• Pump Construction: Aluminium head with cast iron impeller and volute

• Seal Type: Carbon ceramic mechanical seal

• Inlet/Outlet Diameter: 50mm (2") BSP threaded

• Run Time per Tank: Pumps up to 79,000 litres on a single tank of fuel

• Frame: Heavy‑duty steel roll cage with rubber dampers

• Applications: Irrigation, construction site dewatering, industrial water transfer, emergency flood water removal (clear water only)
