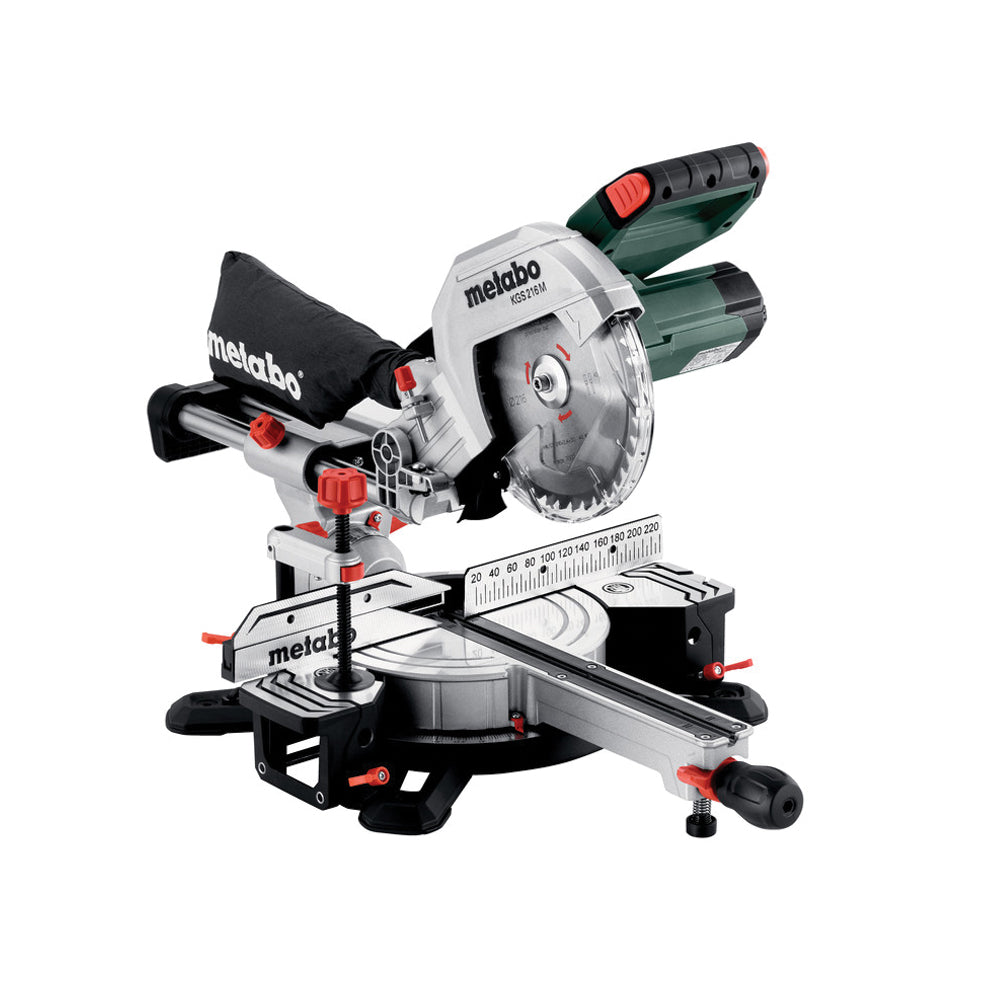

METABO MITRE SAW 1200W (KGS 216 M)

METABO MITRE SAW 1200W (KGS 216 M)

Features:

• Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Large cutting capacity thanks to sliding function for wide work pieces
• Turntable with fast, precise setting of common angles using stop points
• Saw blade inclination from -2 to 47°, therefore also suited for undercuts
• Robust die-cast aluminium design for the highest demands
• Effective dust extraction via integrated dust scoop
• Soft start for long service life of motor and drive
• Extendable table width extensions, also removable to put underneath extremely long work pieces
• Quick-action clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively
• Ergonomic handle areas for carrying with one or two hands

Specification

• Maximum cutting width 90°/45° : 305 / 215 mm
• Maximum cutting depth at 90°/45° : 70 / 40 mm
• Cutting capacity 90°/90° : 305 x 70 mm
• Cutting capacity 45°/45° : 215 x 40 mm
• Turntable setting left/right : 50 / 50 °
• Saw blade tilt left/right : 47 / 2 °
• Saw blade : 216 x 30 mm
• Rated input power : 1200 W
• Rated input power S1 100% : 1200 W
• Rated input power S6 20% : 1500 W
• No-load speed : 5000 rpm
• Speed at rated load : 3750 rpm
• Cutting speed : 57 m/s

Noise emission:

• Sound pressure level : 85 dB(A)
• Sound power level (LwA) : 98 dB(A)
• Uncertainty of measurement K : 3 dB(A)
