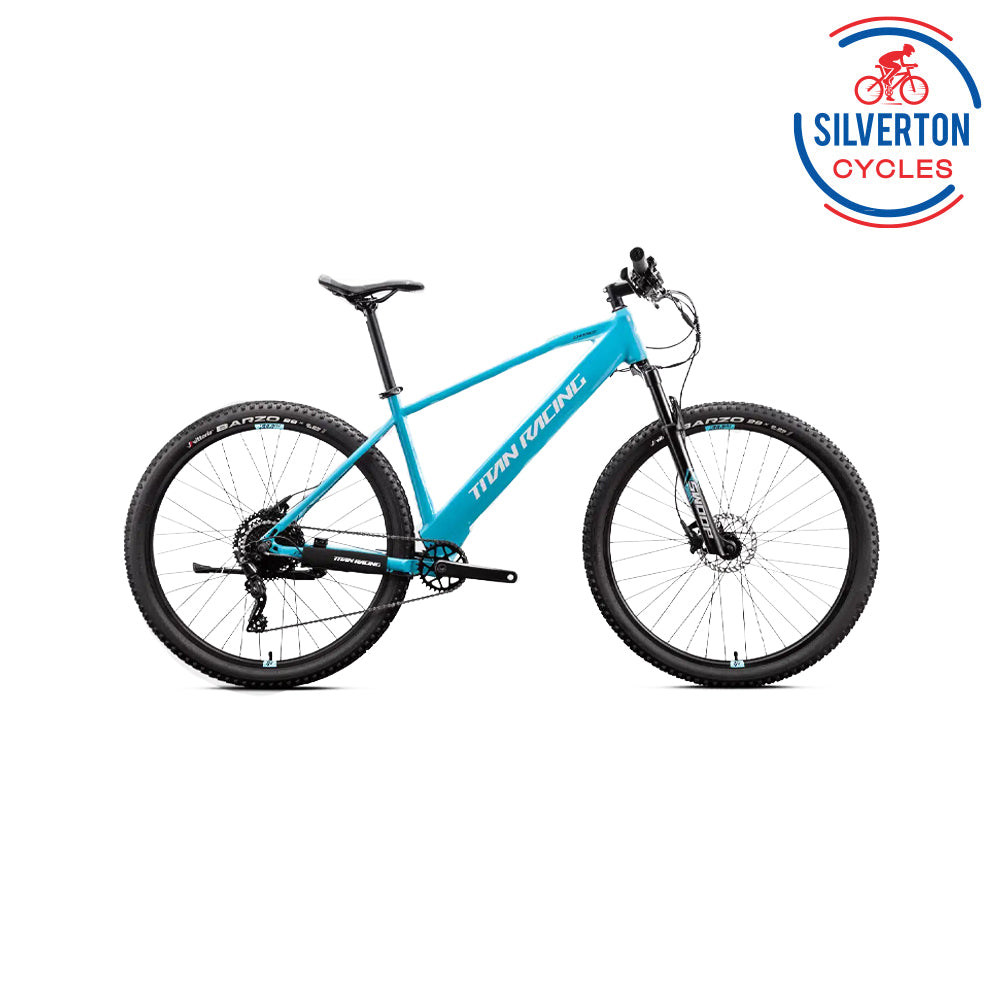

TITAN CHARGE E-ONE S
The Charge is a rear hub driven ebike with plenty power to take you where you want to go. Explore. Travel. Commute. It’s all up to you.
Specifications
Frame: Charge 29" E-MTB Alloy Frame
- Modern Geometry/ Machine Formed Tubing/ Internal Battery/ Internal Cable Routing/ QR 9mm Rear Axle/ Disc Only
Fork: Swoop 368 100mm
- 29″ / 100mm/ Coil Spring/ Lockout/ 9mm QR
Chainwheel: Prowheel 1 X 8 32T
- Prowheel / 32T / 8 Speed / Alloy Crank / Steel Chainring/ No Guard/ S – 170mm Crankarm/ M+L+XL – 175mm Crankarm
Derailleur Front: NIL
Derailleur Rear: Microshift Acolyte RD-M5185M
Shifter Left: NIL
Shifter Right: Microshift TS39-28 Trigger
Chain: KMC Z7
Freewheel: Microshift CS-H083 12-46T
BB Set: NECO B910 Cartridge Type
Speed: 8 SPEED
Crank: N/A
Battery: 36V
- 10.40AH LG Battery Cell
- 2600MAH
Controller: 36V/250W
Display: S866
- LCD
- 36V
Sensor: Double Hall
- KT-V12
- 12 Magnet
Charger: MDA257,36/48V/2A
- South African Standard
- 3 Legs Type
Motor: XIONDA 36H ALLOY 350W 32KM/H
Satelite On/Off Switch: N/A
Satelite Charging Port: N/A
Brake Lever: XOD XD-E500
Brake Front: XOD HD-E520 2 Piston With 160mm
Brake Rear: XOD HD-E520 2 Piston With 160mm
Brake Cable: Black
Rims: 29" DISC 36H
- TR LYE-026B ALLOY DOUBLE WALL / 29*1.5*13G / H:18 W:27 / A/V
Hub Front: ALLOY QR
- KT-K68F DISC QR TYPE M9*13G*36H*100*108
Hub Rear: XIONDA
- XIONDA 36H ALLOY
Spokes: STEEL ED BLACK
Tube: 29″ A/V BUTYL
Tyres: VITTORIA BARZO 29" X 2.25
- XC / 1C COMPOUND / 26TPI NYLON RIGID BLACK WALL
Grip: TR STD GRIP BLACK
Handlebar: TR COMP FLAT H/BAR 760mm
- TR AL-312BT 31.8mm FOV 760mm
Handlebar Stem: TR COMP H/BAR STEM
- TR TDS-D479-8FOV 31.8mm ALLOY OVERSIZED S = 60mm / M/L = 80mm
Headset: NECO H373+C2861 SEMI TYPE ALLOY
Spacer: 2 X 100MM
Saddle: YBT-K245F041
Seat Post: TR COMP 31.6mm
- TR SP-C261 RIGID ALLOY 31.6mm 400mm
Seat Clamp: 31.8 QR BLACK
Kickstand: TR QK-RA08 SIDE KICK STAND FOR E-BIKE
GEOMETRIES:
